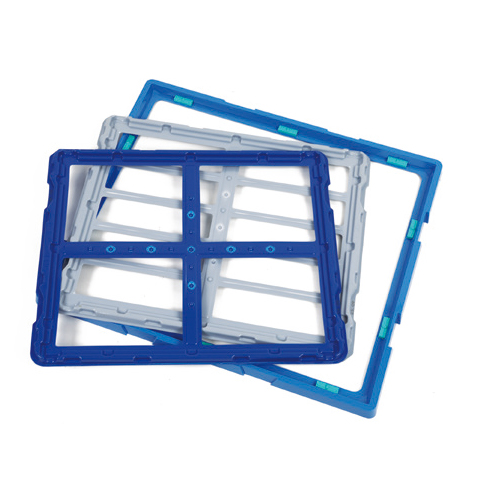

Tray

Product Overview Select 98 more words to run Humanizer.

Trays used in advanced electronic component manufacturing processes—such as PCB, semiconductor, and display production—must meet critical requirements including stable transfer between processes, electrostatic discharge (ESD) prevention, surface damage protection, and contamination control.
Traditionally, these trays have been manufactured from general-purpose plastic materials such as PP and ABS. However, such materials have inherent limitations in durability and cleanliness retention when repeatedly used in high-temperature and high-cleanliness environments.
To address these challenges, we offer high-specification trays manufactured with AT materials specifically engineered for high strength, heat resistance, and chemical resistance, ensuring excellent process stability and extended service life.
In addition, customized production using general-purpose materials such as PP and ABS is also available based on customer specifications and process requirements, allowing flexible 대응 to a wide range of cost levels and process environments.

Product Features

Material-Based Customization Available: A wide range of materials—including AT (Aramid + Teflon (PTFE)), PP, and ABS—can be selected and manufactured according to customer process requirements
High Heat- and High-Strength Design Using AT Material: When AT material optimized for high-temperature environments and repeated processes is applied, it offers excellent resistance to thermal deformation and wear
Optional Anti-Static (ESD) Functionality: ESD-compliant specifications with controlled surface resistivity can be applied to protect electrostatic-sensitive components
High-Precision Mold Design Capability: Supports precise design of pockets and slot structures tailored to various forms such as chips, PCBs, and glass substrates
Structure Suitable for Repeated Cleaning and Reuse: Excellent chemical resistance and structural strength ensure that shape and functionality are maintained even after repeated cleaning and reuse

Product Advantages

Improved Process Stability: Reduces defect rates caused by vibration during transfer, electrostatic discharge, and particle contact
High Level of Customization: Flexible material selection (AT / PP / ABS) based on process environment, budget, and electrostatic sensitivity
Ensured Equipment Compatibility: Provides standardized dimensions and structures suitable for integration with automation equipment, robotic handling systems, and cleanroom processes
Reduced Operating Costs: High-durability materials extend replacement cycles and allow repeated cleaning, reducing consumable costs
Maintained Cleanliness and Quality Reliability: No oil leakage or particle generation, ensuring consistent product quality even under repeated processing conditions

Expected Benefits

Enhanced Alignment and Fixation of Precision Products in Process: Improved compatibility with robotic handling and automation systems
Reusable Through Repeated Cleaning: Reduced replacement cycles and lower operating costs
Cleanroom-Compatible Structure with Particle Suppression: Maintains cleanliness and reduces

Material Property Table by Material Type

Property	Unit	PP	PEEK	PVDF	PTFE	AT-200	AT-500	AT-515 S	AT-515 I	AT-515 C
Specific Gravity (Method A)	-	0.91	1.32	1.78	2.19	2.14	1.69	1.51	1.49	1.49
Tensile Strength	MPa	40	100	55	35	40	50	98.1	114	89.9
Heat Deflection Temperature	°C	65	160	120	60	71	76	198	187	198
Impact Strength (IZOD, Notched)	J/m	40	55	160	-	775	NB	50	69	30
Rockwell Hardness (HRR, Method A)	-	75	90	80	60	65	90	119	114	120
Surface Resistivity	Ω/□	>10¹⁵	>10¹³	>10¹³	>10¹⁷	>10¹³	>10¹³	>10¹³	>10¹³	>10⁶
Wear Resistance (500 cycles / 1 kg)	mg	○	○	○	○	41.6	25.5	13.7	29.7	28.3
