SCM-650BR-4AV

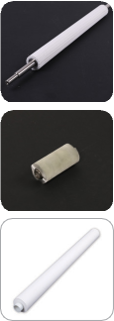

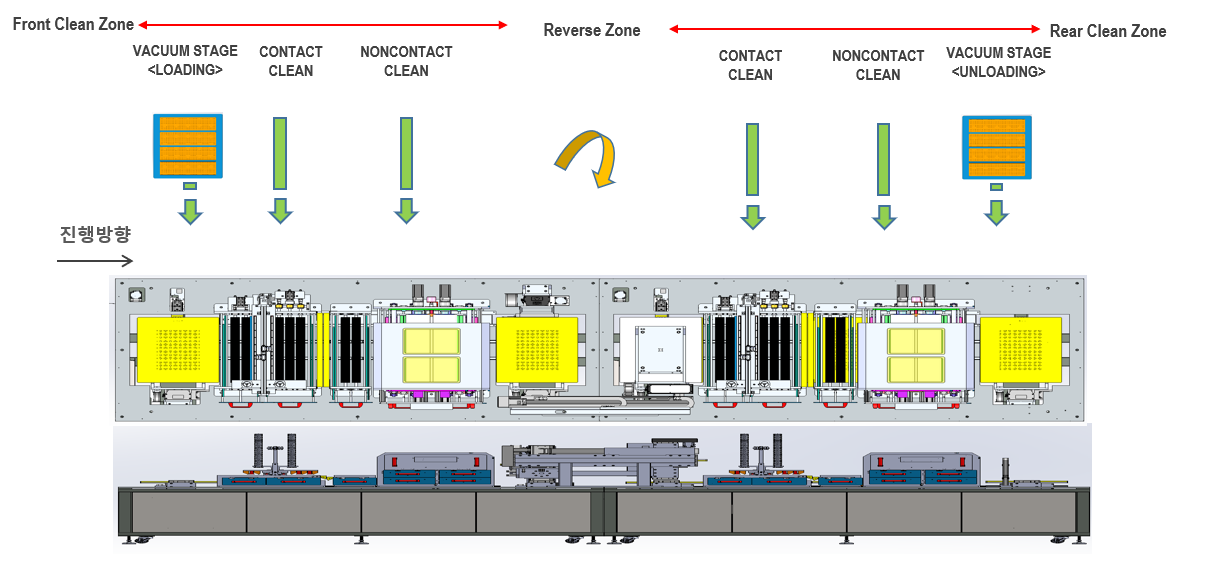

The Hybrid Clean Machine is a cleaning system that attaches the product to a vacuum stage, applies a cleaning solution to the product surface, and then performs a contact cleaning process in which adhesive (stubborn) contaminants on the surface are primarily removed by rotating a Spon Brush.
In addition, a non-contact cleaning process that combines electrostatic force and vacuum suction is carried out in parallel to achieve effective cleaning.
| Item | Size (W×L×H) | Weight | Effective Cleaning Width | Product Thickness | Conveying Speed | Pass Line | Required Voltage | Power Consumption | Input Air Pressure | Air Consumption |
| Unit | mm | kg | mm | mm | m/min | mm | V | kW | kgf/cm² | L/min |
| HCM-550HX / 4CN | 1300 × 5600 × 2150 | Approx. 3,000 | 510 | Min 0.025 ~ Max 2.0 | Min 0.0 ~ Max 5.0 | 1000 (H) ± 30 | 3-phase, 3-wire, 220 | 20 | 6.0 | 25,000 |
| HCM-550HX / 4C | 1300 × 1500 × 2150 | 1,500 | 510 | Min 0.025 ~ Max 2.0 | Min 0.0 ~ Max 5.0 | 1000 (H) ± 30 | 3-phase, 3-wire, 220 | 8 | 6.0 | 10,000 |
| HCM-550HX / 4N | 1300 × 1300 × 2150 | 1,300 | 510 | Min 0.025 ~ Max 2.0 | Min 0.0 ~ Max 5.0 | 1000 (H) ± 30 | 3-phase, 3-wire, 220 | 12 | 6.0 | 8,000 |
