ANT

AUTO CLEAN ROLL MACHINE

SCM-650-RX-4A/4ARF

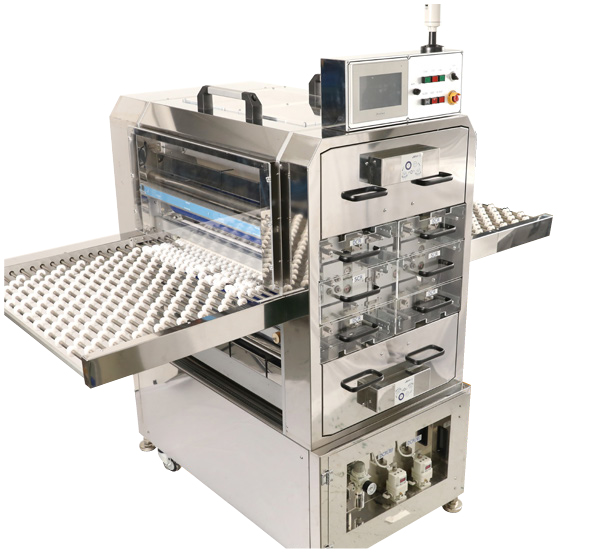

Equipment Overview

Conventional cleaning machines have the drawback of reduced productivity and quality because the adhesive tape on the upper part of the clean roll must be manually removed after cleaning a certain amount of substrates.
In contrast, the Auto Clean Machine removes fine contaminants adhered to the surface of substrates and sheets using an SCR (Spon Clean Roller) rotating at a constant speed, and automatically removes contaminants attached to the DCR (Dust Capture Roller) using an ACF (Auto Cleaning Film).

Components

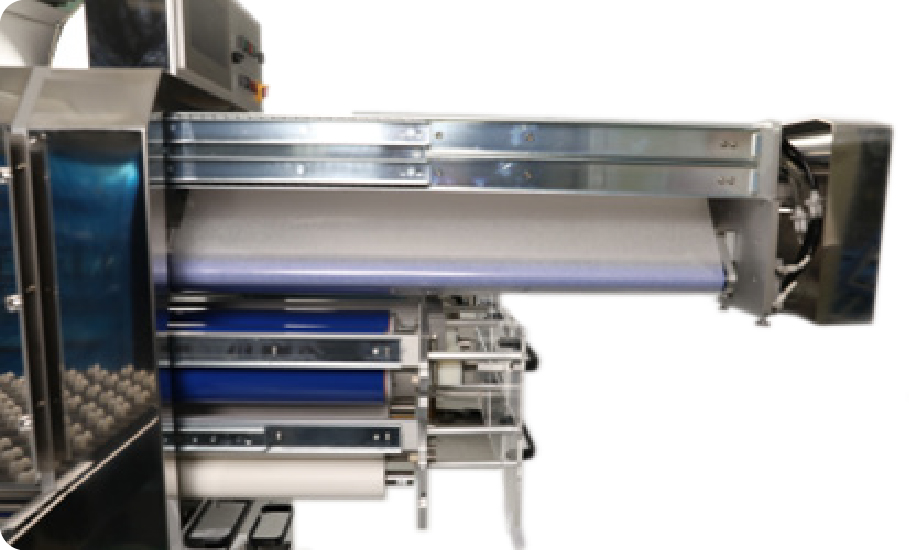

Spon Clean Roll

A roll that gently captures contaminants on product surfaces and stepped areas

Dust Capture Roll

A roll that captures contaminants collected on the SCR onto an adhesive surface

Auto Cleaning Film

A film that finally removes residual contaminants collected on the SCR and DCR through its adhesive film properties

Equipment Options

Auxiliary conveyors at the front and rear of the equipment

If there is a gap between the equipment connected to the front and rear of the main unit, auxiliary conveyors can be installed to enhance stability

AUTO CURL (Warping) Control Function

When the curl (warping) of the product (CCL) is large, this control function can provide auxiliary support to ensure stable conveyance

Installation of AC ion bar units at the product IN/OUT sections

By concentrating the distribution panel and air equipment at the lower part of the machine, the system provides a clear advantage in maintenance efficiency

AUTO SEPARATION / REVERSE Function

A function that allows the cleaning machine to perform back-and-forth (reciprocating) cleaning of the product

Application Effects

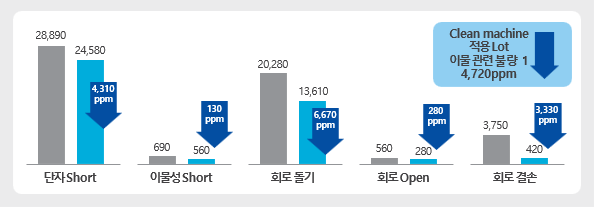

A test was conducted by applying ANT’s Auto Clean Roll Machine to remove contaminants prior to AOI (scan) inspection

Equipment Specifications

Item	Size (W×L×H)	Weight	Effective Cleaning Width	Product Thickness	Conveying Speed	Pass Line	Required Voltage	Power Consumption	Input Air Pressure	Air Consumption
Unit	mm	kg	mm	mm	m/min	mm	V	kW	kgf/cm²	L/min
SCM-650RX (4AF)	1100 × 776 × 1567	Approx. 500	610	Min 0.025 ~ Max 4.0	Min 0.0 ~ Max 5.0	953 (H) + 30	3-phase, 4-wire, 220	2~3	6.0	7.914
SCM-650RX (4ARF)	1128.5 × 650 × 1588	Approx. 500	610	Min 0.025 ~ Max 4.0	Min 0.0 ~ Max 5.0	953 (H) + 30	3-phase, 4-wire, 220	2~3	6.0	7.914
